How to Test a Car Battery With a Multimeter

If your car is struggling to start or the electrical systems seem weaker than usual, the battery could be the culprit.

Regularly testing your battery with a multimeter helps you spot problems early before you’re left stranded.

This guide will take you through what a multimeter is and provide a clear, step-by-step process to check your car battery health at home.

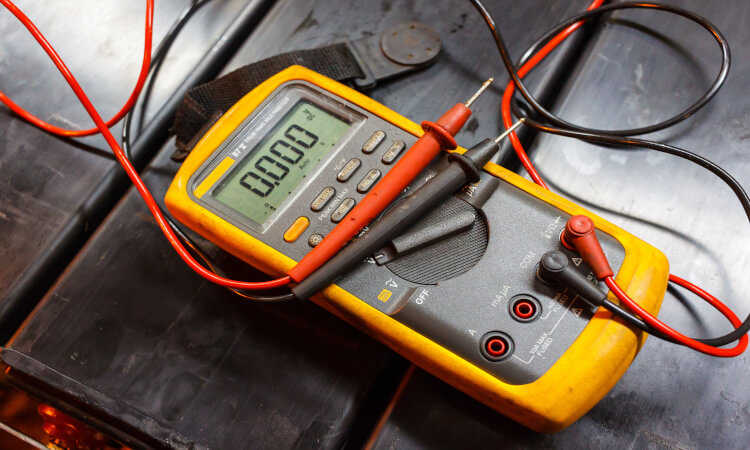

What is a Multimeter?

A multimeter is a handheld tool used to measure electrical values such as voltage, current, and resistance.

For car owners, the most common use is to check the voltage of a car battery to see if it’s healthy or needs replacing.

With a digital display for accuracy, it quickly shows you whether your battery is fully charged, weak, or flat.


Step 1: Prepare the Battery

Locate your car’s battery, usually under the bonnet, and check the terminals.

The positive terminal will often have a red cover with a plus (+) sign, while the negative terminal is black with a minus (–) sign.

If you notice corrosion or dirt, clean it carefully with fine-grit sandpaper or a wire brush.

Wear gloves to protect against battery acid during this step. Clean terminals ensure accurate multimeter readings.


Step 2: Set Up the Multimeter

Switch your multimeter on and turn the dial to the DC volts setting. Since a car battery runs on 12 volts, select the nearest option above this – typically 20 volts.

If your multimeter is auto-ranging, simply ensure it’s set to DC voltage. Before taking a reading, remove any “surface charge” from the battery by turning on your headlights for around two minutes, then switching them off.


Step 3: Connect the Multimeter Probes

Your multimeter has two probes – red and black. Attach the red probe to the battery’s positive terminal and the black probe to the negative terminal.

Once connected, the screen will display the current voltage level.

Step 4: Test the Resting Voltage

With the engine off, check the battery’s resting voltage.

A healthy, fully charged battery should read between 12.6 and 12.8 volts.

Anything below 12.2 volts suggests the battery is weak and may need charging or replacement.

If the reading is under 12 volts, the battery is considered flat and likely won’t start your car.


Step 5: Test During Ignition (Crank Cycle)

Ask someone to turn the ignition while you keep the probes connected. As the starter motor engages, the voltage will dip briefly.

The reading should not drop below 10 volts – if it does, your battery may not have enough power to start the car reliably and could be close to failure.


Step 6: Test With the Engine Running

Once the car is running, the voltage should rise as the alternator takes over to recharge the battery.

• A healthy reading will be between 13.8 and 14.4 volts.
• If the voltage is lower than 13.5 volts, the alternator may be underperforming.
• Higher than 15 volts could suggest an overcharging issue, which also needs attention.

Step 7: Test Under Electrical Load

For a final check, switch on your car’s electrical systems – headlights, heater, and radio – while the engine is running.

The voltage should remain above 13.5 volts. If it drops significantly, it indicates either a weak battery or a failing alternator.

Keeping Your Car Battery Health in Check

Testing your car battery with a multimeter is a simple and effective way to monitor its health.

A fully charged battery should sit at around 12.6 volts, drop no lower than 10 volts on ignition, and hold steady above 13.8 volts when the engine is running.

Regular checks can help you spot problems early, prevent breakdowns, and give peace of mind that your car’s electrical system is working properly.
